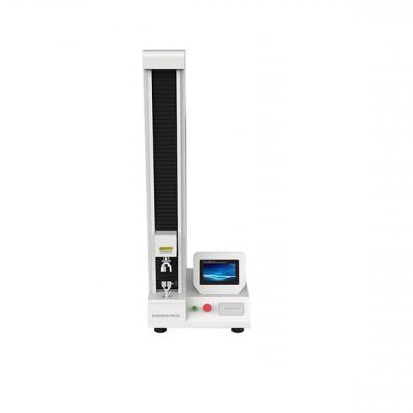

Alpha GBL-H 300N tensile tester
This device is suitable for mechanical property tests such as tension, peeling, heat sealing, tearing, and puncturing of various metal and non-metal materials. It meets the testing requirements of most quality standards. It is widely used in quality control of plastic films, food, and pharmaceuticals, as well as in scientific research and teaching experiments in testing institutions and universities.
Product Description
Equipped with high-precision sensors, the instrument features highly accurate force measurement, stable loading, and long service life. The LCD screen, integrated with professional software, displays test curve data in real time and supports test report queries, ensuring convenient and efficient testing. Fully automatic operation and control of the measurement unit are provided, along with comprehensive safety protection functions, including limit protection, overload protection, and emergency stop.
Specifications
| Item | Technical Parameters |
|---|---|
| Force Measurement Range | 0~300 N (0~500 N optional) Within ±0.5 %FS of indicated value (Class 0.5) |
| Force Measurement Accuracy | Within ±0.5 %FS of indicated value (Class 0.5) |
| Test Speed | 0~500 mm/min (stepless speed regulation) |
| Displacement Precision | Within ±0.5% of indicated value |
| Effective Test Width | 30 mm (50 mm, 60 mm customizable) |
| Effective Test Stroke | 750 mm (1000 mm, 1200 mm customizable) |
| Dimension (L×W×H) | 600 mm×500 mm×1300 mm |
| Weight | 65 kg |
| Power Supply | AC 220 V, 50 Hz |
Application
| Item | Description |
|---|---|
| Composite film bag | It is suitable for tensile, peeling, heat sealing, tearing, puncture, compression, bending and other performance tests of composite films, co-extruded films, composite bags, retort bags, aluminum-plastic composite bags and other products. |
| Paper | It is suitable for tensile strength, peeling, deformation, tearing, heat sealing, bonding and other performance tests of paper, kraft paper, facial tissue, toilet paper and other products. |
| Medical Patches | It is suitable for tensile strength, peeling, deformation, tearing, heat sealing, bonding and other performance tests of medical cold compress, plaster and other products. |
| Pressure Tapes | It is suitable for tensile strength, peeling, deformation, tearing, heat sealing, bonding and other performance tests of cellophane tape, electrical insulating tape, medical zinc oxide adhesive tape and other products. |
