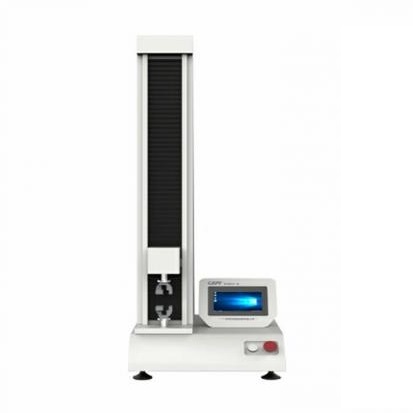

ALPHA GBH 500/1500N tensile tester for plastic
The GBH-2 multifunctional single-column electronic tensile tester is designed for testing plastics, films, fibers, rubber sheets, composite materials, tapes, soft packaging materials, paper, non-woven fabrics, medicine packaging materials, syringes, bottles, rubber plugs, and other packaging materials. It evaluates mechanical properties to meet the diverse needs of different users.
Product Description
The GBH-2 tensile tester is suitable for testing tensile strength, peeling, heat sealing, tearing, puncturing, compression, bending, shearing, and other mechanical properties of various metal and non-metallic materials. It also calculates parameters such as breaking strength and elastic modulus. Additionally, it can be used in the medical industry, research, quality control, and other applications. This equipment is essential for physical property testing, teaching, research, and quality assurance.
| Technical Parameters | Details |
| Force Measurement | Range 0~500 N (Optional: 0~1500 N) |
| Force Measurement Accuracy | Within ±0.5%FS of indicated value |
| Force Resolution | 0.001 N |
| Displacement Resolution | 0.001 mm |
| Test Speed | 0~500 mm/min (Stepless speed variation) |
| Test Stroke | 750 mm (Customizable: 1000 mm) |
| Effective Test Width | 30 mm (Customizable: 50 mm) |
| Displacement Accuracy | Within ±0.5% of indicated value |
| Dimensions | L×W×H: 460 mm×525 mm×1430 mm |
| Weight | 86 kg |
| Power Supply/Power | 220 V, 50 Hz / 500W |
