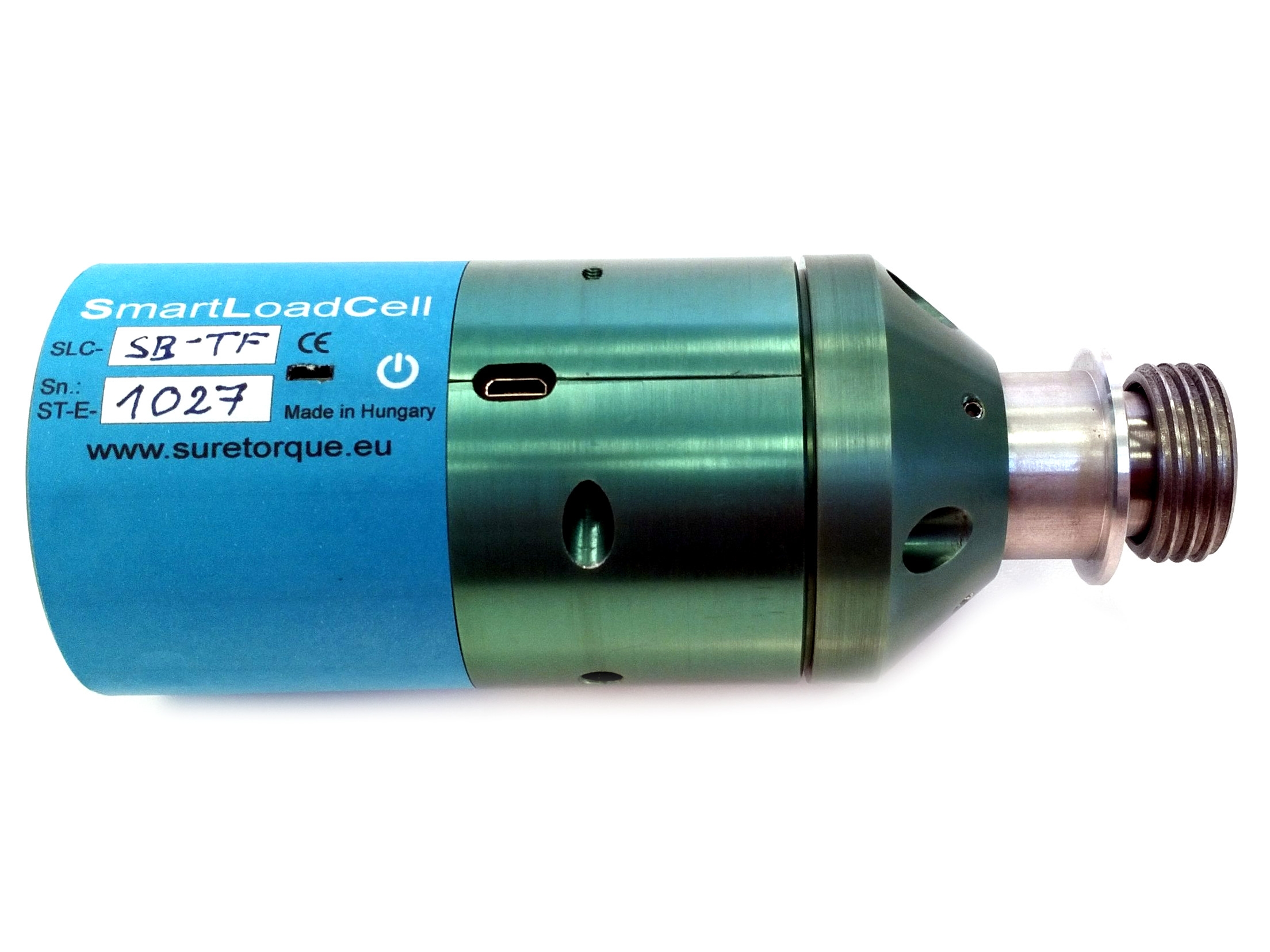

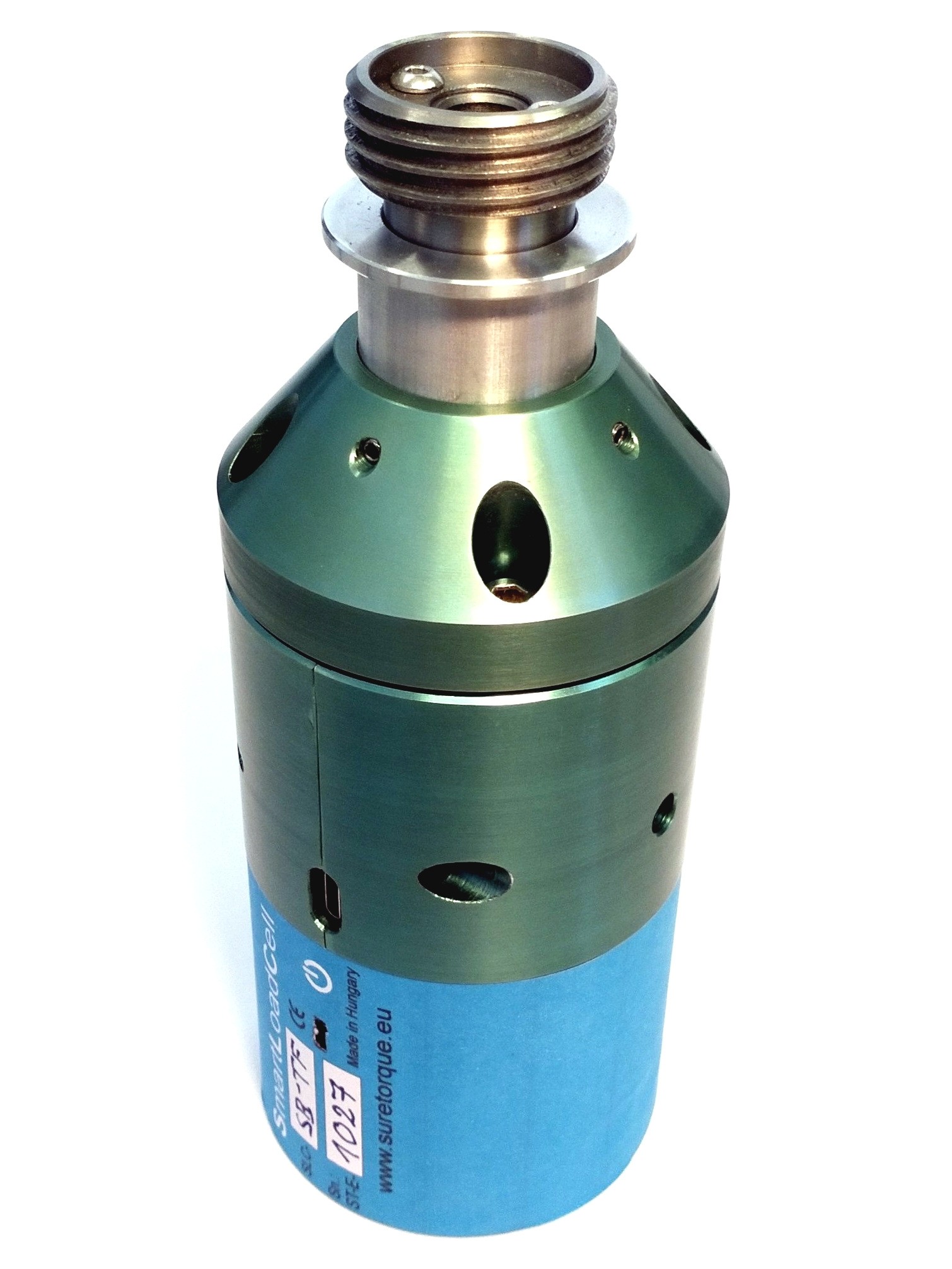

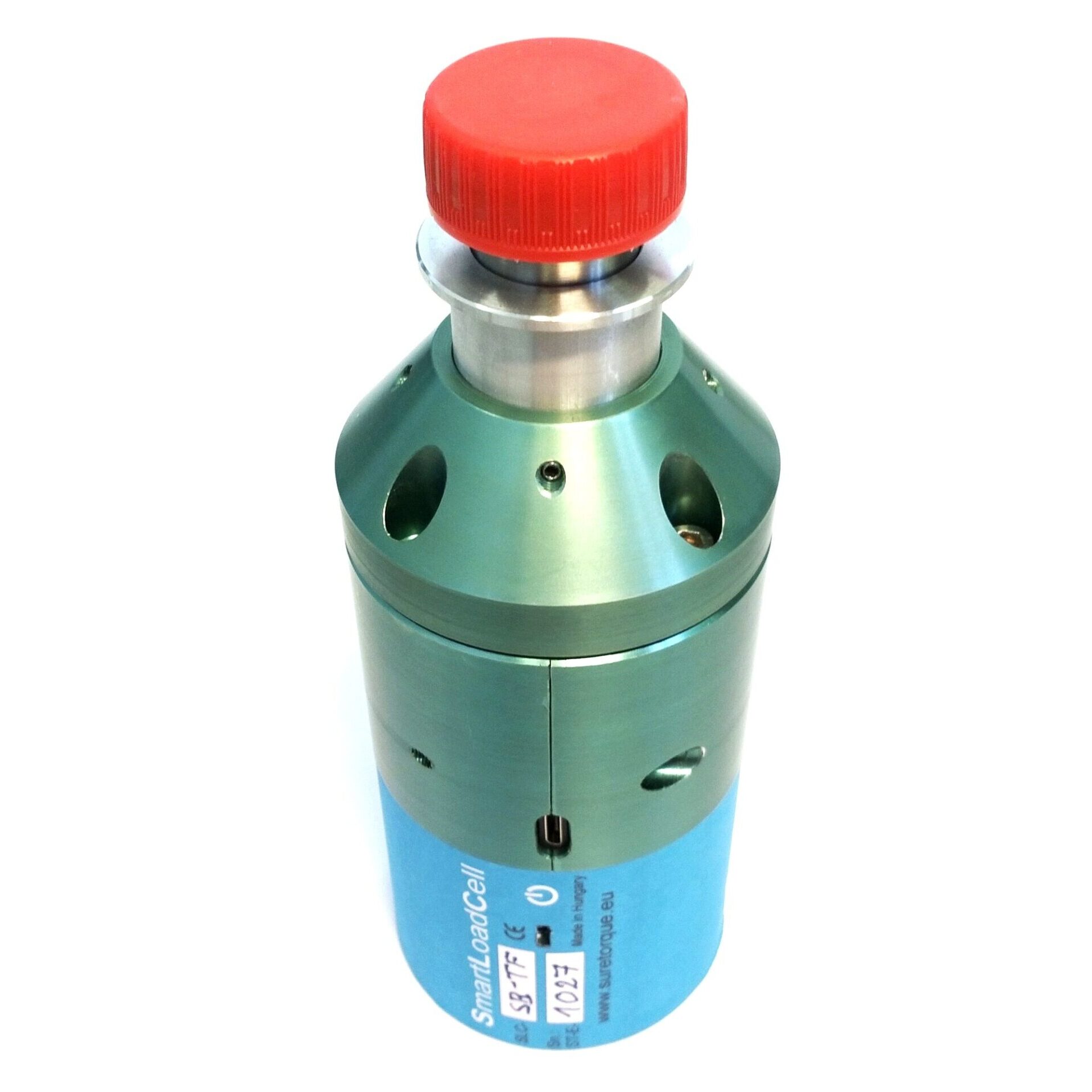

Smart bottle for Capper Torque & Force

SB-TF Smart Capping machine test bottle for Crown cork, ROPP, Crimp, twist or screw caps

Introducing the latest smart technology to test capping machine force in production.

  • Check the capper torque & top load force during the production, no need to stop
  • Interchangeable stainless / aluminum fitments to suit different necks and container shapes/sizes
  • Several sizes or custom sizes
  • Wireless and interface with android mobiles or tablets & PC software
  • Torque-time graph drawing and saving
  • Factory calibrated with 3 years warranty

Product Description

Included accessories 1 neck adapter + 1 neck support
Smartphone requirement 1 GB RAM, 1 GHz Processor, 4 GB ROM
Android version Android 4.4 or higher
Measuring range -10Nm – +10 Nm (cca +/- 88.5 lbfIn) / 30 kg
Units of measurement LbfIn, LbfFt, Nm, dNm, Ncm, kgfcm, mV/V, kg, N, Lb
Displayed values Actual, Max1, (Max2), torque-time graph
Accuracy +/- 0,5% F.S.
Safe Overload 120%
Maximum measuring frequency 200 Hz (5 ms) on each channel
Range analysis Yes – In range / under range / over range, with Over Range Alarm function
Capable closure types Any kind of serrated twist cap
Maximum sample size Any
Calibration kit available
Operation time 6 hours
DC supply Micro USB
Bluetooth range 20-40 m on air
Included software Android application, Data manager for PC
Memory Thousands of results (phone memory)
  Maximum length of recordings: 5000 points
Stored data’s Measurement nr, peak results, date, time, graph, instrument serial number, comment, calibration date
Resistance grade IP 65
Language English
Dimensions: Footprint / Height D59 x 150 mm
Net weight 0.9 kg
Shipping packaging Heavy duty waterproof case
Country of Manufacture Hungary
Warranty 3 years
