Smart bottle Tester for Capper Torque

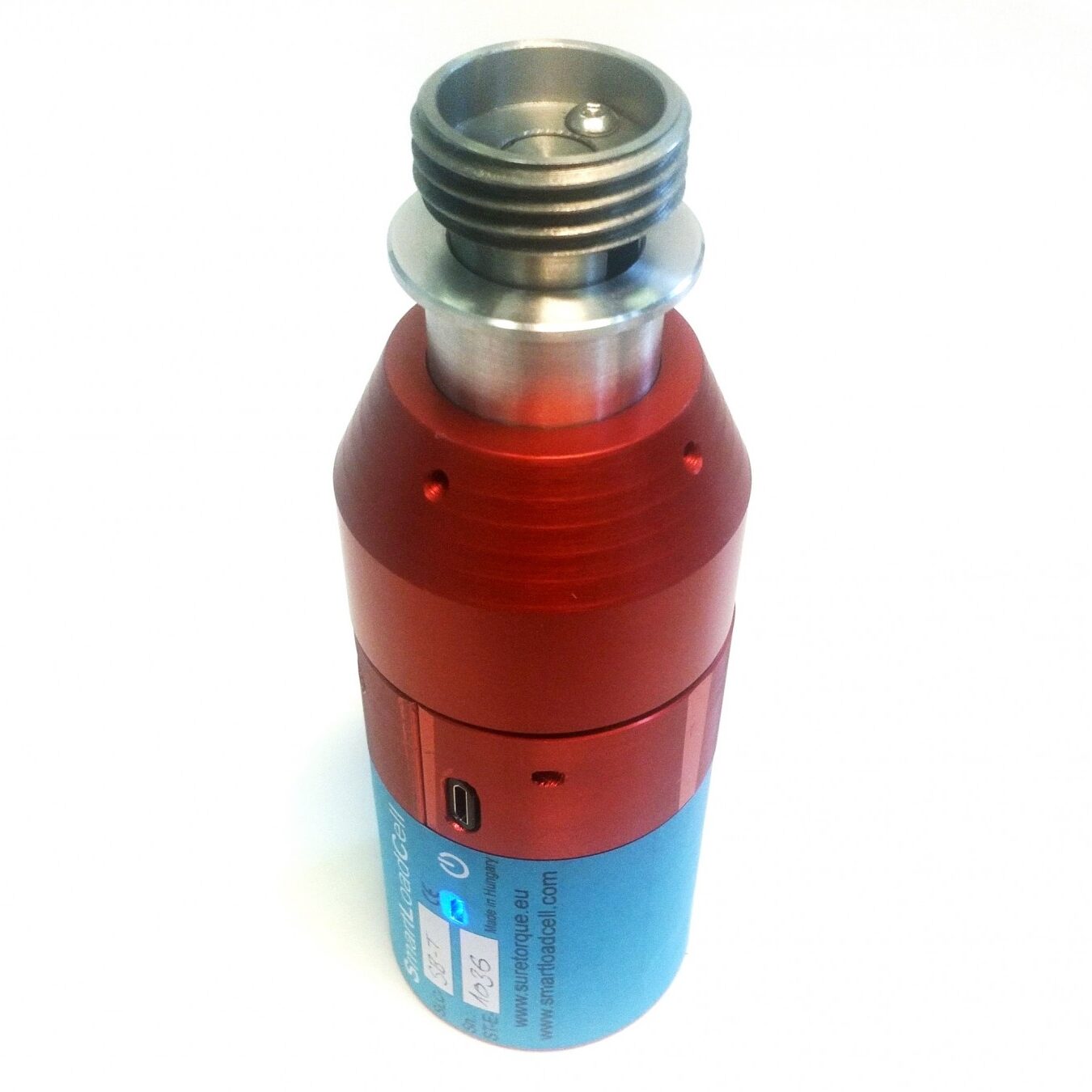

SB-T Smart Capping machine test bottle for twist or screw caps
Introducing the latest smart technology to test capping machine Torque in production.
- Check the capper torque during the production, no need to stop
- Interchangeable fitments to suit different necks and container shapes/sizes

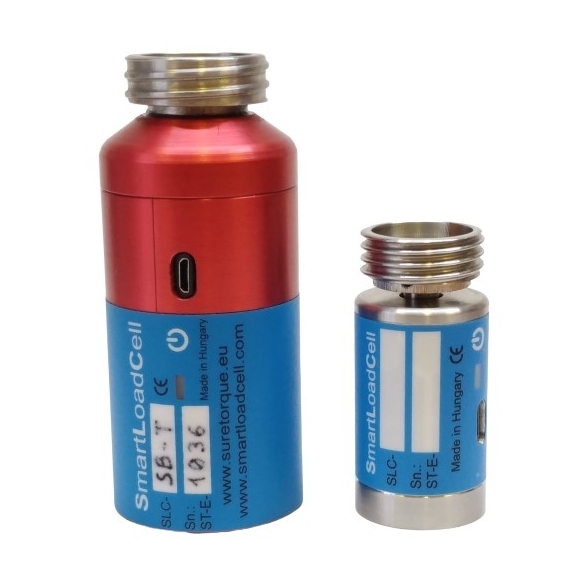

- Two main sizes or custom sizes
- Wireless and works with android mobiles or tablets & PC software
- Torque-time graph drawing and saving
- Factory calibrated with 3 years warranty
Product Description
| Included accessories | 1 Neck adapter + 1 Neck support |
| Smartphone requirement | 1 GB RAM, 1 GHz Processor, 4 GB ROM |
| Android version | Android 4.4 or higher |
| Measuring range | -10Nm – +10 Nm (cca +/- 88.5 lbfIn) |
| Units of measurement | LbfIn, LbfFt, Nm, dNm, Ncm, kgfcm, mV/V |
| Displayed values | Actual, Max1, (Max2), torque-time graph |
| Accuracy | +/- 0,25% F.S. |
| Safe Overload | 120% |
| Maximum measuring frequency | 400 Hz (2.5 ms) |
| Range analysis | Yes – In range / under range / over range, with Over Range Alarm function |
| Capable closure types | Any kind of serrated twist cap |
| Maximum sample size | Any |
| Calibration kit | available |
| Operation time | 10-12 hours (SB-T mini 2-3 hours) |
| DC supply | Micro USB |
| Bluetooth range | 20-40 m on air |
| Included software | Android application, Data manager for PC |
| Memory | Thousands of results (phone memory) |
| Maximum length of recordings: 5000 points | |
| Resistance grade | IP 65 |
| Language | English |
| Dimensions: Footprint / Height | Dia 44 x 100 mm & SB-T mini Dia 30 x 65mm |
| Net weight | 0,33 kg (0.15 kg @ SB-T mini) |
| Shipping packaging | Heavy duty waterproof case |
| Country of Manufacture | Hungary |
| Warranty | 3 years |
