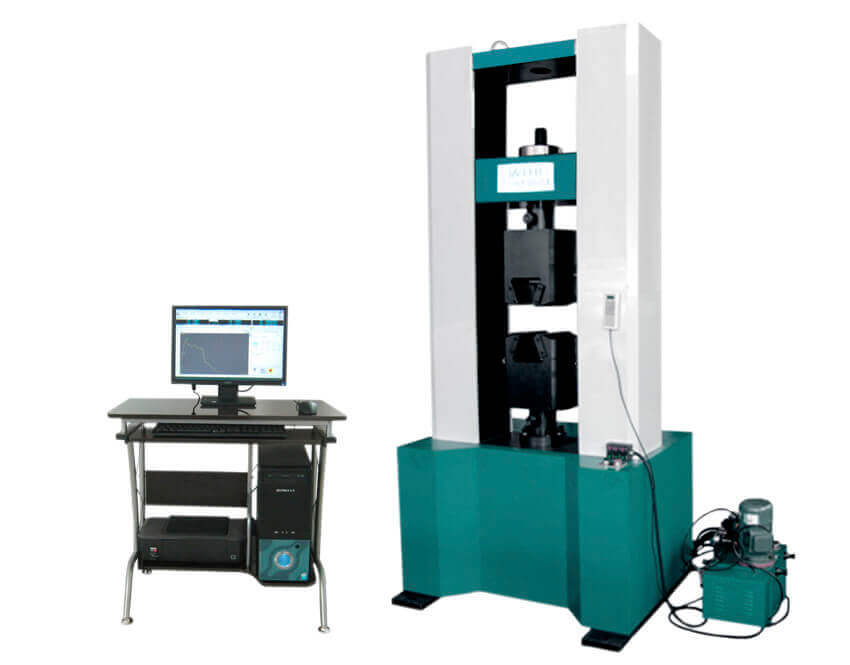

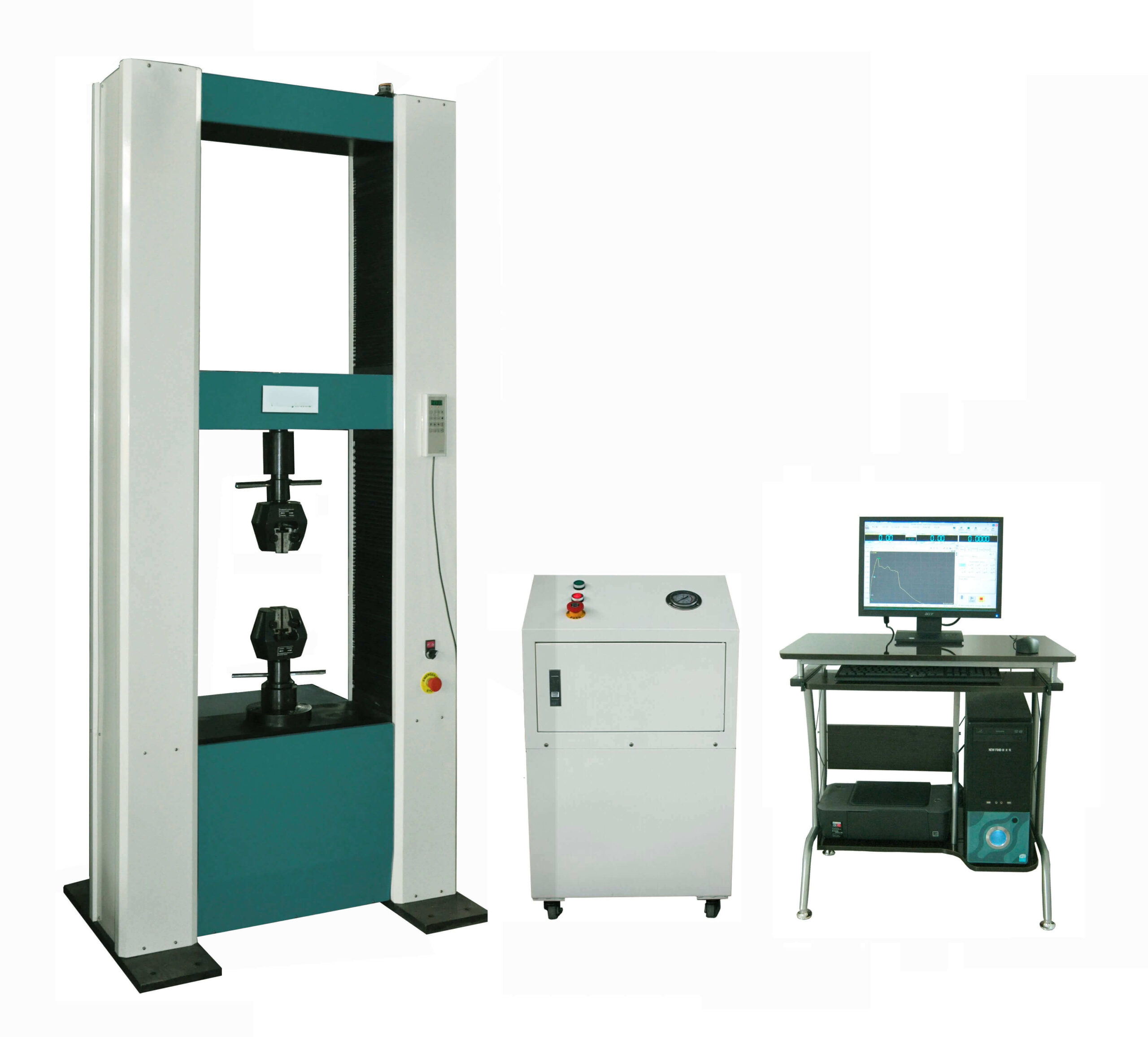

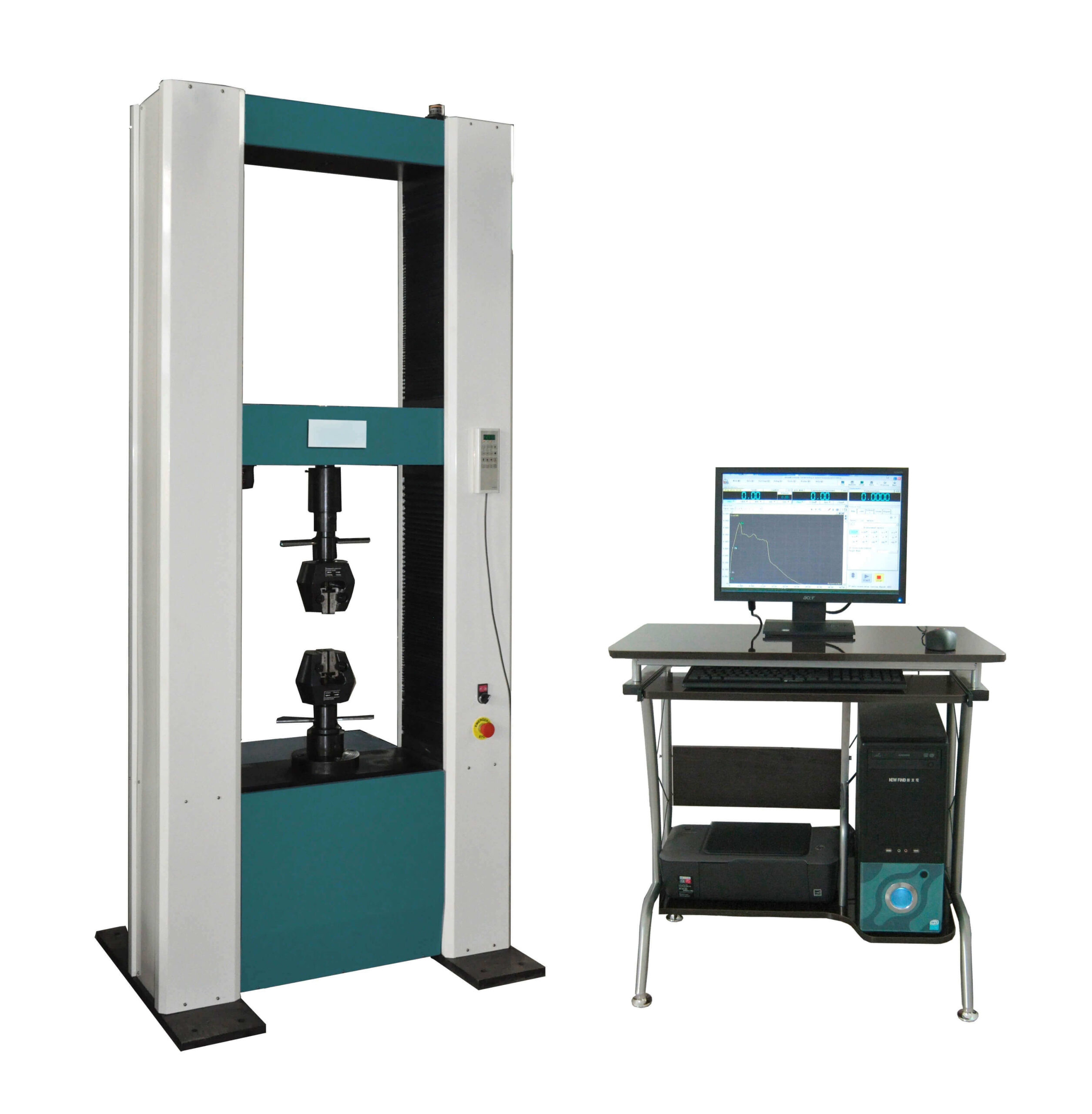

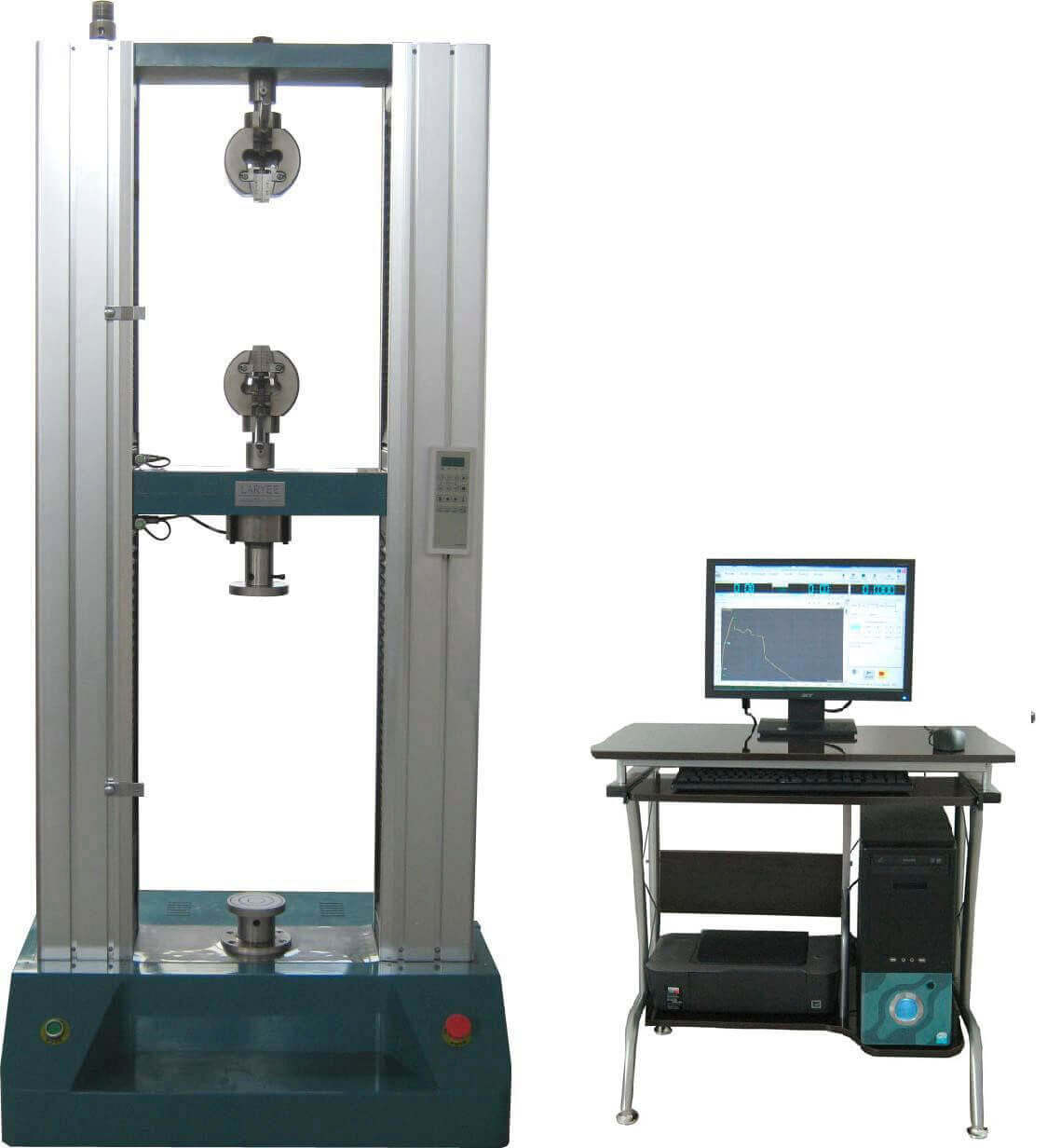

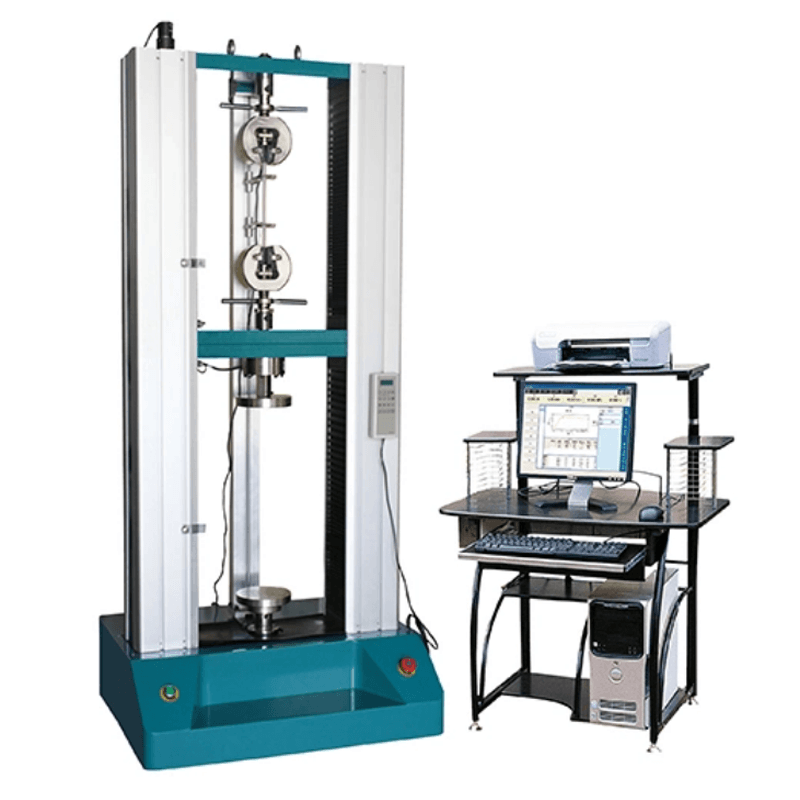

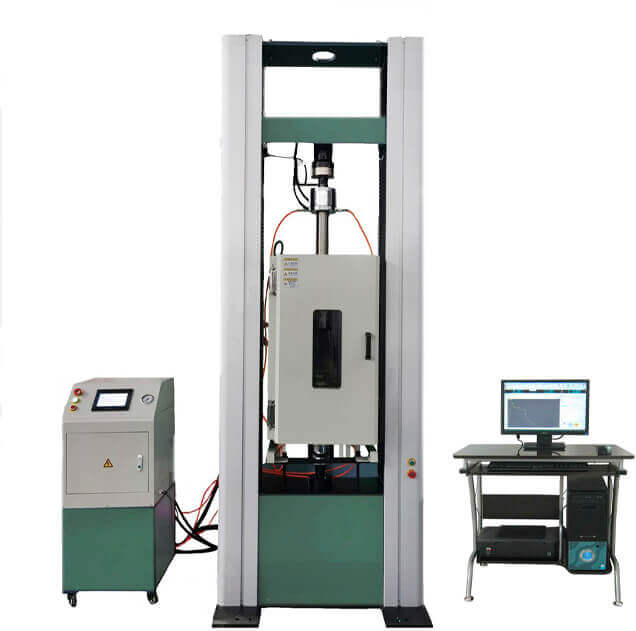

Tensile & compression – universal testing Machines – High capacity 10-300kN
Alpha engineers high-precision testing systems built for demanding industrial applications across quality control labs, manufacturing facilities, and research institutes throughout New Zealand.
Technical Features & System Capabilities
-
Custom & Standard Load Frames: Tailored to your specific specimen dimensions or pre-configured as heavy-duty standard models for rapid deployment.
-
Dual-Force Capabilities: Seamlessly execute high-precision tensile and compression force testing on a single robust frame.
-
High-Rigidity Floor Frame: Precision-aligned crossbeam driven by dual high-accuracy ball screws for zero-alignment error under full load.
-
Panasonic Servo Motor Drive: Delivers ultra-quiet operation and exact speed control from 0.1 to 500 mm/min.
-
Closed-Loop Computer Control: External controller provides real-time 3-mode closed-loop control across Load, Deformation, and Displacement via USB connection.
-
High-Precision Celtron Sensors: Features ultra-high resolution load cells; supports up to 3 force sensors and 8 extensometers simultaneously.
-
Instant Unit Conversion: Switch measurement units instantly between N, kN, lbf, gf, and kgf.
-
Integrated Safety Protocols: Equipped with dual safety switches (mechanical limits and emergency stop) plus automatic “Stop while destroy” specimen break detection.
-
Local NZ Service & Calibration: Dedicated local support and ongoing calibration to keep your laboratory operational.
Product Description
Versatile Testing Capabilities & Standards Compliance
Key Application & Multi-Industry Highlights
-
Materials Tested: Steel rebar, metal sheets, wire rope, fasteners, high-density polymers, composites, power cables, rubber, industrial springs and many more.
-
Global Standards Compliance: Performs standard and customized tests compliant with AS/NZS, ISO, ASTM, DIN, EN, and JIS international standards.
-
Industry Applications: Built for structural metal fabricators, polymer processors, independent testing laboratories, and university engineering departments.
Software, Real-Time Curve Analysis & Reporting
-
Live Graphical Display: Graphically display and zoom into real-time curves including Load-Time, Extension-Time, Stress-Strain, and Load-Extension.
-
Automated Property Calculations: Automatically extracts key metrics including Tensile Strength, Yield Strength ($R_{p0.2}$, $R_{t0.5}$), and Elastic Modulus.
-
Batch Testing & Data Export: Run continuous sample batches with individual result analysis and direct export to customizable Excel reports.
-
OS & Network Integration: Compatible with Windows 8, 10, and 11, with full connectivity to enterprise or laboratory network systems.
Technical Specifications
Below is a summary of standard floor-standing electronic universal testing machine configurations. Custom frame capacities, extended test heights, and custom stroke lengths are engineered upon request.
| Parameter | Electromechanical UTM Specification |
| Available Load Capacities | 10 kN, 20 kN, 50 kN, 100 kN, 200 kN, 300 kN |
| Frame Type | High-Rigidity Floor-Standing Structure |
| Drive System | Panasonic Servo Motor + Precision Ball Screws |
| Speed Control Range | 0.1 mm/min – 500 mm/min |
| Force Sensor | High-Precision Celtron Load Cell |
| Force Accuracy | ±0.5% of displayed value |
| Supported Sensors | Up to 3 Force Sensors and 8 Extensometers simultaneously |
| Control Modes | 3-Mode Closed-Loop (Load, Deformation, Displacement) |
| Selectable Force Units | N, kN, lbf, gf, kgf |
| Safety Features | Mechanical Limit Switches, Emergency Stop, Automatic Break Detection |
| PC Interface & OS | High-Speed External Controller (USB) / Windows 8, 10, 11 |
